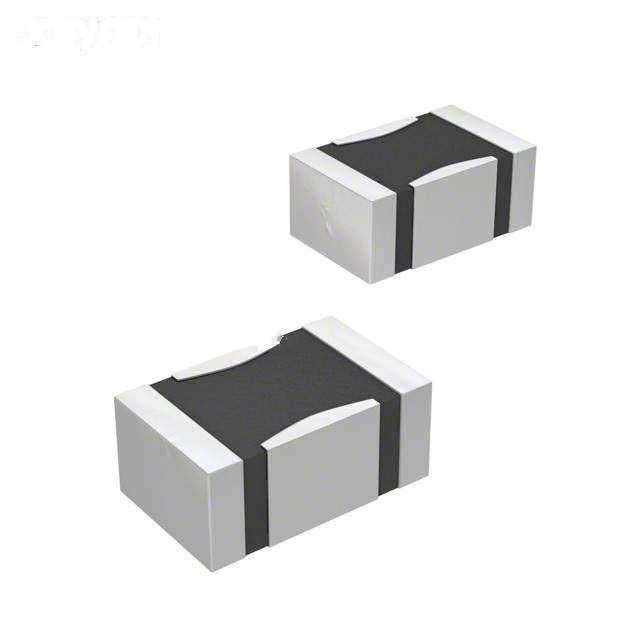

| Manufacturer Part Number: | YNA21B2J0G106M |
|---|---|
| Manufacturer: | TDK Corporation |
| Product Category: | Ceramic Capacitors |
| Available Quantity: | 13010 Pieces |
| Unit Price: | Quote by Email |
| Description: | 10µF 4V Ceramic Capacitor X5R 0805 (2012 Metric) 0.079" L x 0.049" W (2.00mm x 1.25mm) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | YNA21B2J0G106M Datasheet |
| Internal Part Number | 898-YNA21B2J0G106M | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | C Series General Applications SEAT, CCV, and TVCL Design Tools Guide to Replacing an Electrolytic Capacitor with an MLCC | |
| Video File | High Capacitance Capacitor Measurement Tutorial | |
| Featured Product | CER Series Controlled ESR MLCCs | |
| PCN Obsolescence/ EOL | Multiple Devices 22/Apr/2016 | |
| PCN Part Number | MLCC Part Number Change 30/Nov/2012 | |
| EDA / CAD Models | Download from Accelerated Designs | |
| Online Catalog | CERB and CERD Series | |
| Category | Capacitors | |
| Family | Ceramic Capacitors | |
| Manufacturer | TDK Corporation | |
| Series | YNA | |
| Packaging | Tape & Reel (TR) | |
| Part Status | End of Life | |
| Capacitance | 10µF | |
| Tolerance | ±20% | |
| Voltage - Rated | 4V | |
| Temperature Coefficient | X5R | |
| Mounting Type | Surface Mount, MLCC | |
| Operating Temperature | -55°C ~ 85°C | |
| Applications | General Purpose | |
| Ratings | - | |
| Package / Case | 0805 (2012 Metric) | |
| Size / Dimension | 0.079" L x 0.049" W (2.00mm x 1.25mm) | |
| Height - Seated (Max) | - | |
| Thickness (Max) | 0.039" (1.00mm) | |
| Lead Spacing | - | |
| Features | Controlled ESR | |
| Lead Style | - | |
| Standard Package | 4,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | YNA21B2J0G106M | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
YNA21B2J0G106M is in stock for immediate shipping now. We are the distributor of TDK Corporation all series components. The condition of YNA21B2J0G106M is new and unused, you can buy YNA21B2J0G106M TDK Corporation with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for YNA21B2J0G106M.
