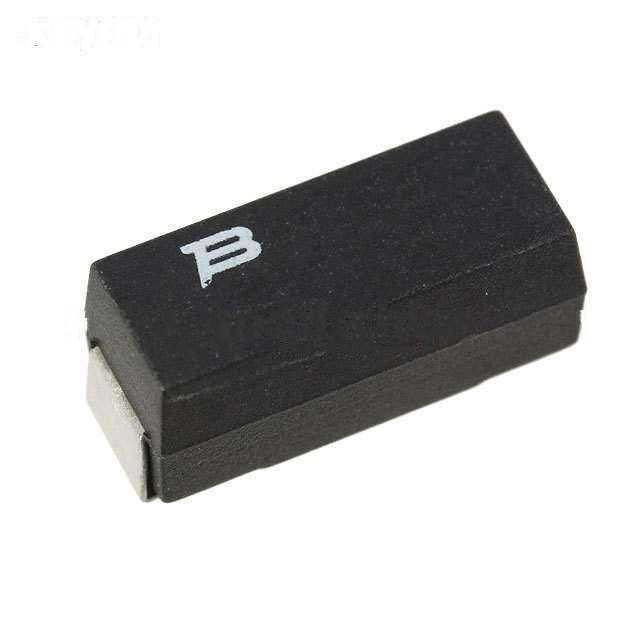

| Manufacturer Part Number: | PWR5322W24R0JE |
|---|---|
| Manufacturer: | Bourns Inc. |
| Product Category: | Chip Resistor - Surface Mount |
| Available Quantity: | 10510 Pieces |
| Unit Price: | Quote by Email |
| Description: | RES SMD 24 OHM 5% 3W 5322 |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | PWR5322W24R0JE Datasheet |
| Internal Part Number | 898-PWR5322W24R0JE | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| RoHS Information | PWR5322 W Material Declaration | |
| 3D Model | PWR5322.stp | |
| EDA / CAD Models | Download from Accelerated Designs | |
| Online Catalog | PWR5322 Series | |
| Category | Resistors | |
| Family | Chip Resistor - Surface Mount | |
| Manufacturer | Bourns Inc. | |
| Series | PWR5322 | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Resistance (Ohms) | 24 | |
| Tolerance | ±5% | |
| Power (Watts) | 3W | |
| Composition | Wirewound | |
| Features | Current Sense, Pulse Withstanding | |
| Temperature Coefficient | ±20ppm/°C | |
| Operating Temperature | -55°C ~ 155°C | |
| Package / Case | 5322 J-Lead | |
| Supplier Device Package | 5322 | |
| Size / Dimension | 0.532" L x 0.217" W (13.50mm x 5.50mm) | |
| Height | 0.243" (6.16mm) | |
| Number of Terminations | 2 | |
| Standard Package | 1,500 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | PWR5322W24R0JE | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
PWR5322W24R0JE is in stock for immediate shipping now. We are the distributor of Bourns Inc. all series components. The condition of PWR5322W24R0JE is new and unused, you can buy PWR5322W24R0JE Bourns Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for PWR5322W24R0JE.
