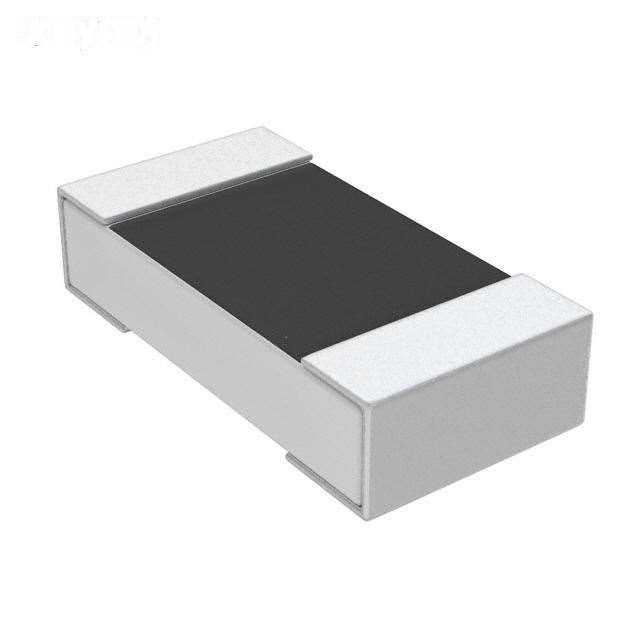

.jpg)
| Manufacturer Part Number: | PLT0603Z2500AST5 |
|---|---|
| Manufacturer: | Vishay Thin Film |
| Product Category: | Chip Resistor - Surface Mount |
| Available Quantity: | 10510 Pieces |
| Unit Price: | Quote by Email |
| Description: | RES SMD 250 OHM 0.05% 0.15W 0603 |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | PLT0603Z2500AST5 Datasheet |
| Internal Part Number | 898-PLT0603Z2500AST5 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| PCN Assembly/Origin | PLT Low TCR 20/Nov/2014 | |
| EDA / CAD Models | Download from Accelerated Designs | |
| Online Catalog | PLT Series | |
| Category | Resistors | |
| Family | Chip Resistor - Surface Mount | |
| Manufacturer | Vishay Thin Film | |
| Series | PLT | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Resistance (Ohms) | 250 | |
| Tolerance | ±0.05% | |
| Power (Watts) | 0.15W | |
| Composition | Thin Film | |
| Features | Anti-Corrosive, Flame Proof, Moisture Resistant, Safety | |
| Temperature Coefficient | ±5ppm/°C | |
| Operating Temperature | -55°C ~ 125°C | |
| Package / Case | 0603 (1608 Metric) | |
| Supplier Device Package | 0603 | |
| Size / Dimension | 0.064" L x 0.032" W (1.63mm x 0.81mm) | |
| Height | 0.020" (0.51mm) | |
| Number of Terminations | 2 | |
| Standard Package | 500 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | PLT0603Z2500AST5 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
PLT0603Z2500AST5 is in stock for immediate shipping now. We are the distributor of Vishay Thin Film all series components. The condition of PLT0603Z2500AST5 is new and unused, you can buy PLT0603Z2500AST5 Vishay Thin Film with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for PLT0603Z2500AST5.
