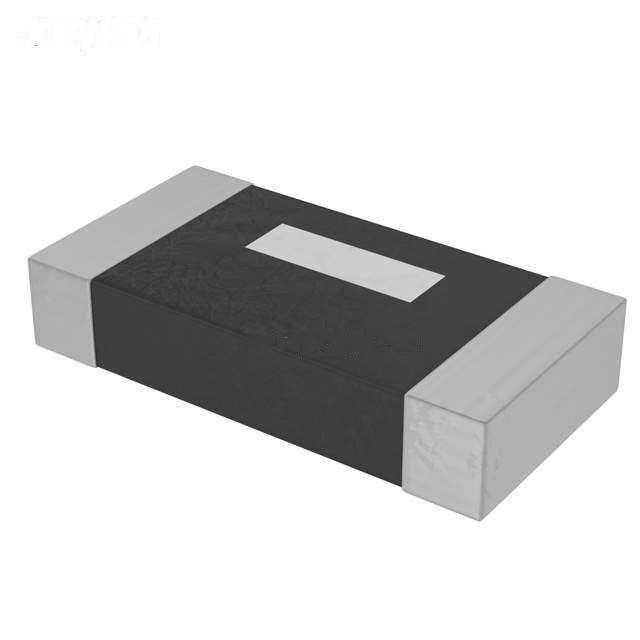

| Manufacturer Part Number: | PF1206FRF070R02L |
|---|---|
| Manufacturer: | Yageo |
| Product Category: | Chip Resistor - Surface Mount |
| Available Quantity: | 101010 Pieces |
| Unit Price: | Quote by Email |
| Description: | RES SMD 0.02 OHM 1% 1/4W 1206 |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | PF1206FRF070R02L Datasheet |
| Internal Part Number | 898-PF1206FRF070R02L | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Featured Product | PF1206/2512 Low Ohmic Current Sensing Resistors | |
| EDA / CAD Models | Download from Accelerated Designs | |
| Online Catalog | PF Series | |
| Category | Resistors | |
| Family | Chip Resistor - Surface Mount | |
| Manufacturer | Yageo | |
| Series | PF | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Resistance (Ohms) | 0.02 | |
| Tolerance | ±1% | |
| Power (Watts) | 0.25W, 1/4W | |
| Composition | Thick Film | |
| Features | Current Sense, Moisture Resistant | |
| Temperature Coefficient | ±100ppm/°C | |
| Operating Temperature | -55°C ~ 155°C | |
| Package / Case | 1206 (3216 Metric) | |
| Supplier Device Package | 1206 | |
| Size / Dimension | 0.126" L x 0.063" W (3.20mm x 1.60mm) | |
| Height | 0.033" (0.85mm) | |
| Number of Terminations | 2 | |
| Standard Package | 4,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | PF1206FRF070R02L | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
PF1206FRF070R02L is in stock for immediate shipping now. We are the distributor of Yageo all series components. The condition of PF1206FRF070R02L is new and unused, you can buy PF1206FRF070R02L Yageo with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for PF1206FRF070R02L.
