| Manufacturer Part Number: | 100E330JW3600X |
|---|---|
| Manufacturer: | American Technical Ceramics |
| Product Category: | Ceramic Capacitors |
| Available Quantity: | 9047 Pieces |
| Unit Price: | Quote by Email |

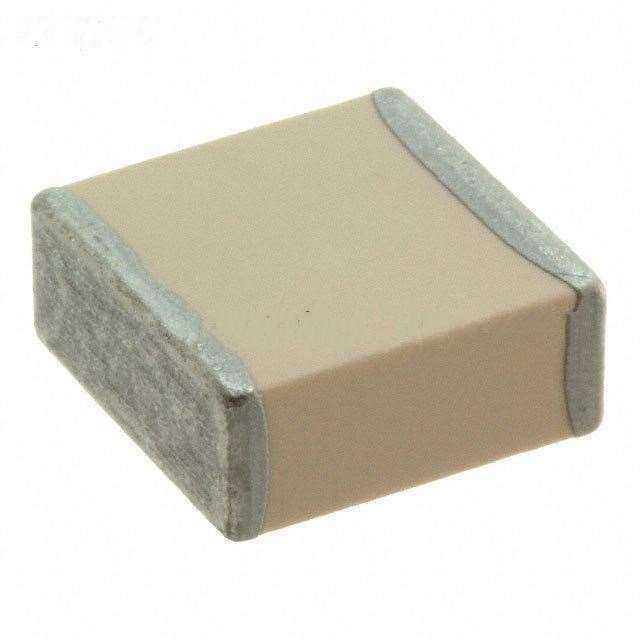

| Description: | 33pF 3600V (3.6kV) Ceramic Capacitor P90 Nonstandard 0.380" L x 0.380" W (9.65mm x 9.65mm) |
| Lead Free Status / RoHS Status: | Contains lead / RoHS non-compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 100E330JW3600X Datasheet |
| Internal Part Number | 898-100E330JW3600X | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Online Catalog | ATC 100E Series | |
| Category | Capacitors | |
| Family | Ceramic Capacitors | |
| Manufacturer | American Technical Ceramics | |
| Series | ATC 100E | |
| Packaging | Tray | |
| Part Status | Active | |
| Capacitance | 33pF | |
| Tolerance | ±5% | |
| Voltage - Rated | 3600V (3.6kV) | |
| Temperature Coefficient | P90 | |
| Mounting Type | Surface Mount, MLCC | |
| Operating Temperature | -55°C ~ 125°C | |
| Applications | RF, Microwave, High Frequency | |
| Ratings | - | |
| Package / Case | Nonstandard | |
| Size / Dimension | 0.380" L x 0.380" W (9.65mm x 9.65mm) | |
| Height - Seated (Max) | - | |
| Thickness (Max) | 0.170" (4.32mm) | |
| Lead Spacing | - | |
| Features | High Q, Low Loss | |
| Lead Style | - | |
| Standard Package | 24 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 100E330JW3600X | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
100E330JW3600X is in stock for immediate shipping now. We are the distributor of American Technical Ceramics all series components. The condition of 100E330JW3600X is new and unused, you can buy 100E330JW3600X American Technical Ceramics with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 100E330JW3600X.
